RunCam Split 2

USD$76.12
SKU:
SPlit2-OR
Quantity:

Product Description


Specs:
FOV Angle of Field FPV FOV 130° / Recording FOV 165°
Video Resolution 1080@60fps / 1080@30fps / 720@60fps
Video Files MOV
Image Resolution 2 Megapixels
TV Output NTSC (720*480) / PAL (720*576) Switchable
Real-Time Audio Output Yes
Interface Micro USB / UART
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
WiFi Module Support (Removable)
Dimensions PCB 38*38mm / Lens Module 22*20mm
Power Input DC 5-17V/DC 5V(USB)
Working Current 650mA @5V / 270mA @12V
Weight 21g/23g(Plus Wifi Module)


PACKAGE CONTENTS

  • 1 x Camera
  • 1 x WiFi module
  • 1 x SD Card Protector
  • 2 x Mounting Brackets
  • 1 x Set of screws
  • 1 x 180mm Lens Extension Cable
  • 1 x TV-out and power USB cable
  • 1 x TV-out and power cable (Male)
  • 1 x 3pin FPV silicone cable (Female)
  • 1 x Manual



DOWNLOAD MANUAL






Instruction diagram
RunCam Split 2
Installation Diagram
RunCam Split 2
MicroSD card installation
RunCam Split 2

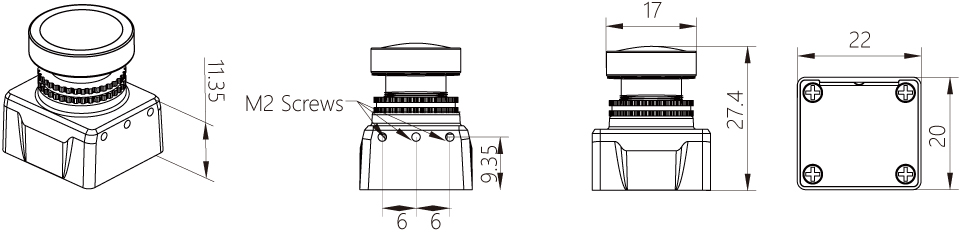

Unit of length:mm
RunCam Split 2 RunCam Split 2
